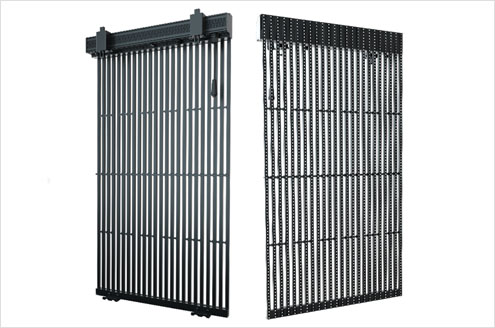

| LM-GS series LED grating screen LM-GS series outdoor LED grille screen is an innovative product with a new form and new display. It has the characteristics of permeability, thin and light cabinet, simple installation, low power consumption, etc.; it breaks the limitations of traditional advertising and successfully realizes the application of architectural new media advertising. Standard Cabinet size: 1000×500mm (size, spacing and shape support customization) Application range: building facade, glass curtain wall, building roof, outdoor column, etc. |
| Product Version | LM-GS-10 | LM-GS-15.6 | LM-GS-20 | LM-GS-25 | LM-GS-31.25 |
| Pixel Pitch | 10mm | 15.6mm | 20mm | 25mm | 31.25mm |
| LED Type | SMD2727 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density | 10000dot/m² | 4096dot/m² | 2500dot/m² | 1600dot/m² | 1024dot/m² |
| Cabinet Size(WxH) | 1000*500mm | 1000*500mm | 1000*500mm | 1000*500mm | 1000*500mm |
| Cabinet resolution | 100*50mm | 64*32mm | 50*25mm | 40*20mm | 32*16mm |
| Cabinet Material | Aluminum profile | Aluminum profile | Aluminum profile | Aluminum profile | Aluminum profile |
| Weight/Tile(Cabinet） | ≤20kg/m² | ≤18kg/m² | ≤16kg/m² | ≤18kg/m² | ≤16kg/m² |
| Transparency | 38% | 50% | 60% | 50% | 60% |
| Brightness | ≤6000cd/m² | ≤7000cd/m² | ≤7000cd/m² | ≤7000cd/m² | ≤7000cd/m² |
| Refresh Rate | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
| System | Nova | Nova | Nova | Nova | Nova |
| Max. Power Consumption | ≤700W/㎡ | ≤700W/㎡ | ≤700W/㎡ | ≤550W/㎡ | ≤450W/㎡ |
| Ave. Power Consumption | ≤500W/㎡ | ≤500W/㎡ | ≤500W/㎡ | ≤400W/㎡ | ≤300W/㎡ |
| Installation | Fixed /hoisting /seat installation | Fixed /hoisting /seat installation | Fixed /hoisting /seat installation | Fixed /hoisting /seat installation | Fixed /hoisting /seat installation |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| viewing angle | 160° | 160° | 160° | 160° | 160° |
| Work Voltage | AC110~240V | AC110~240V | AC110~240V | AC110~240V | AC110~240V |
| range of working temperature | -20～55°C | -20～55°C | -20～55°C | -20～55°C | -20～55°C |
| Storage temperature range | -20～90°C | -20～90°C | -20～90°C | -20～90°C | -20～90°C |
| Operating humidity range | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Storage humidity range | 20%~65% | 20%~65% | 20%~65% | 20%~65% | 20%~65% |
| Product Life | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
1. Communication needs
2. Quotation and scheme design
3. Cooperation and production
4. Installation and debugging
5. Personnel training
6. After-sales support
