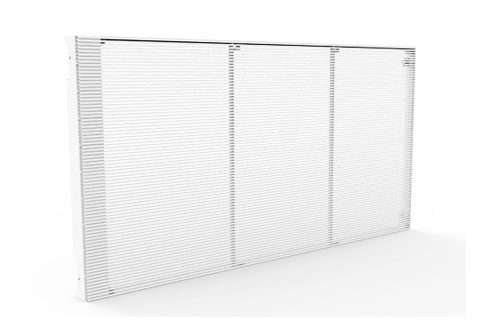

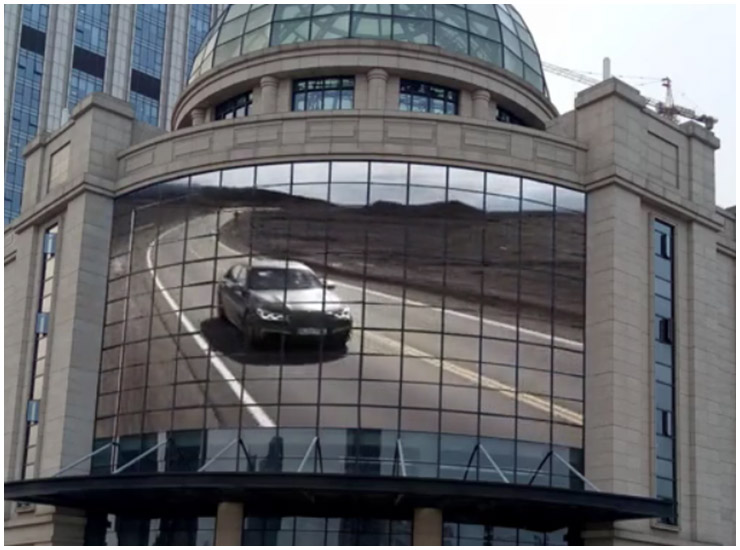

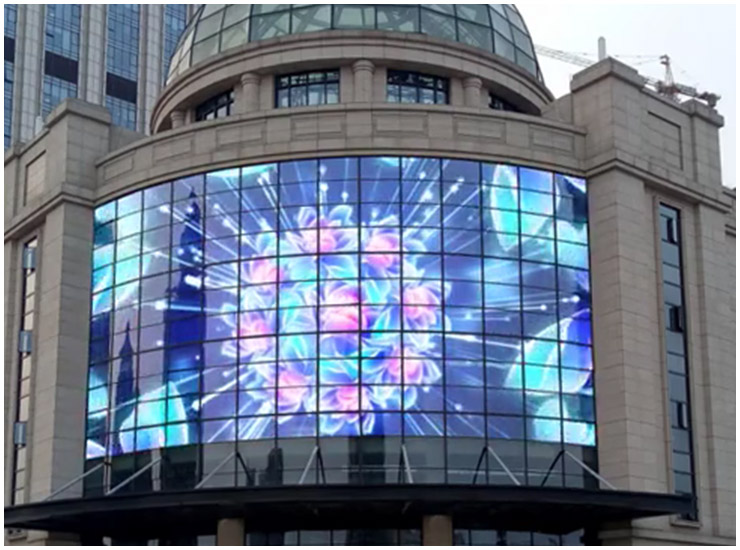

Curtain wall LED transparent screen Series LM-PX series are products used in the field of glass curtain walls. Break through the penetration rate of more than 85%, reduce the line of sight blocking, so as to better realize the "stealth" combined with glass. The highlight of 6500CD also has a clear visual experience when viewed outdoors during the day. In terms of maintenance, it supports the disassembly of a single light bar, so that it can be repaired and replaced very quickly. The external dimensions can be customized according to project requirements to meet the needs of special projects. Installation method: fixed installation Cabinet size: 1500×1000mm (color, shape and size can be customized) Application areas: glass curtain wall, sky curtain, glass plank road, indoor commercial space, etc. | |

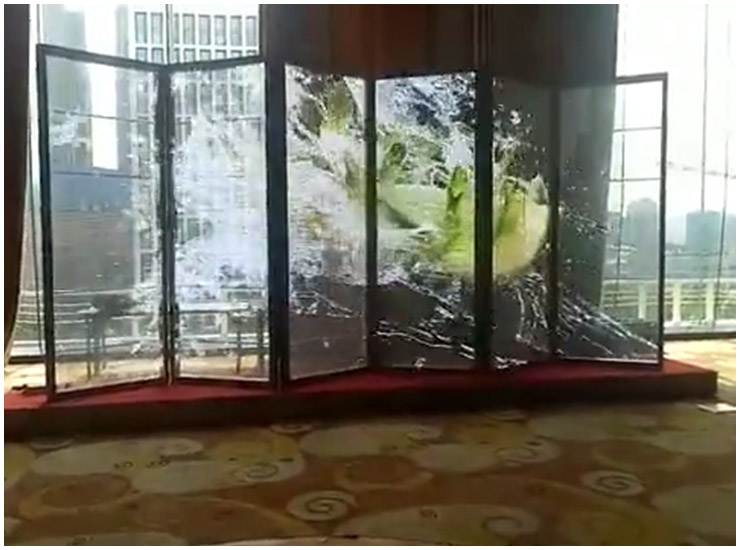

Customization Modern glass curtain walls have complex structures and different sizes. Standardized cabinets cannot meet the actual needs of the project. LianmanLED can customize the best product solutions according to the actual situation, develop and design diversified product structures, and better match the glass curtain walls. Fusion, while ensuring the most stable performance, realize the transparency and integrity of the transparent screen display effect | |

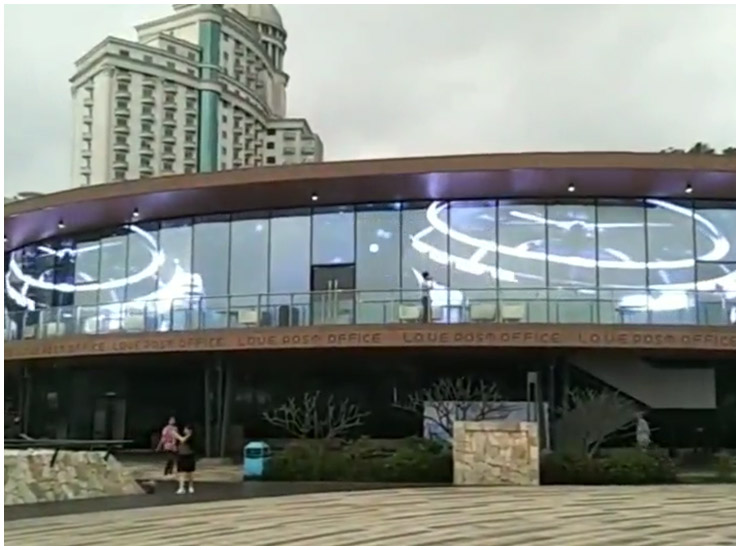

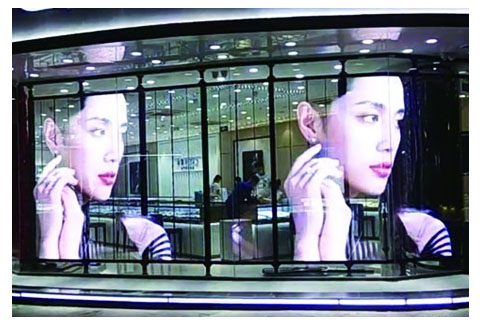

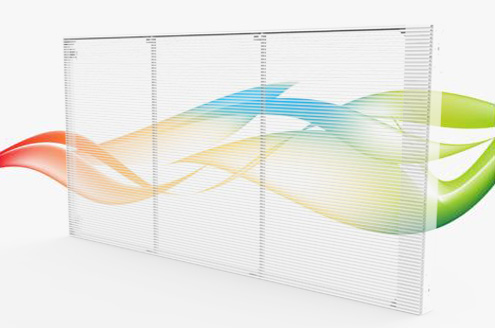

Indoor installation, outdoor viewing Compared with conventional screens, it is easier to maintain, safer, and the ad approval process is more relaxed, even without approval. 1. Side-emitting packaging technology, LED is small in size, breaking through the limitations of traditional transparent screen permeability, up to more than 90% 2. Proprietary video on transparent screen, the transparent part of the LED does not emit light during playback, which saves more than 30% of energy compared with conventional screens | |

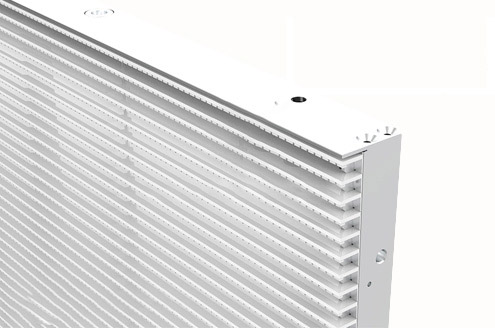

Fast maintenance The light bar adopts a unique plug-in process, and a single light bar can be disassembled independently and can be replaced directly. It greatly reduces the time and cost of maintenance, and avoids the inconvenience of disassembling modules for maintenance of traditional fixed transparent screens. Realize the humanized fast and accurate maintenance mode. |
Product Version | LM-PX-3.91 | LM-PX-10.4 | LM-PX-15.625 |
Pixel Pitch | 3.91*7.81mm | 10.4mm | 15.625mm |
LED Type | 3510 | 3510 | 3510 |
Pixel Density(pixels/㎡) | 32747 | 9246 | 4096 |
Weight | 10kg/㎡ | 10kg/㎡ | 10kg/㎡ |
Transparency | 65% | 80% | 85% |
Brightness(cd/㎡) | 5500 | 5500 | 5500 |
Brightness Level | 256 | 256 | 256 |
Refresh Rate | 3840 Hz | 3840 Hz | 3840 Hz |
Color Processing | 14Bit | 14Bit | 14Bit |
System | Nova | Nova | Nova |
Max. Power Consumption | 800W/㎡ | 800W/㎡ | 800W/㎡ |
Ave. Power Consumption | 250W/㎡ | 250W/㎡ | 250W/㎡ |
Installation | Fixed installation or hoisting or base installation | Fixed installation or hoisting or base installation | Fixed installation or hoisting or base installation |
IP Rating | IP30 | IP30 | IP30 |
Hor. viewing angle | 140° | 140° | 140° |
Vert. viewing angle | 140° | 140° | 140° |
Work Voltage | DC 5V&12V | DC 5V&12V | DC 5V&12V |
Operational Temp | -10~40°C | -10~40°C | -10~40°C |
Operational Humidity | 10%-90% | 10%-90% | 10%-90% |
Input Voltage | AC 100V~240V | AC 100V~240V | AC 100V~240V |
Product Life | 100,000 hours | 100,000 hours | 100,000 hours |
